Wayfinding

This guide covers multipoint routing: routes through several booths or points of interest in the embedded map, including optional reordering so visitors visit POIs efficiently.

💡 Multipoint routing APIs are documented in the JS SDK

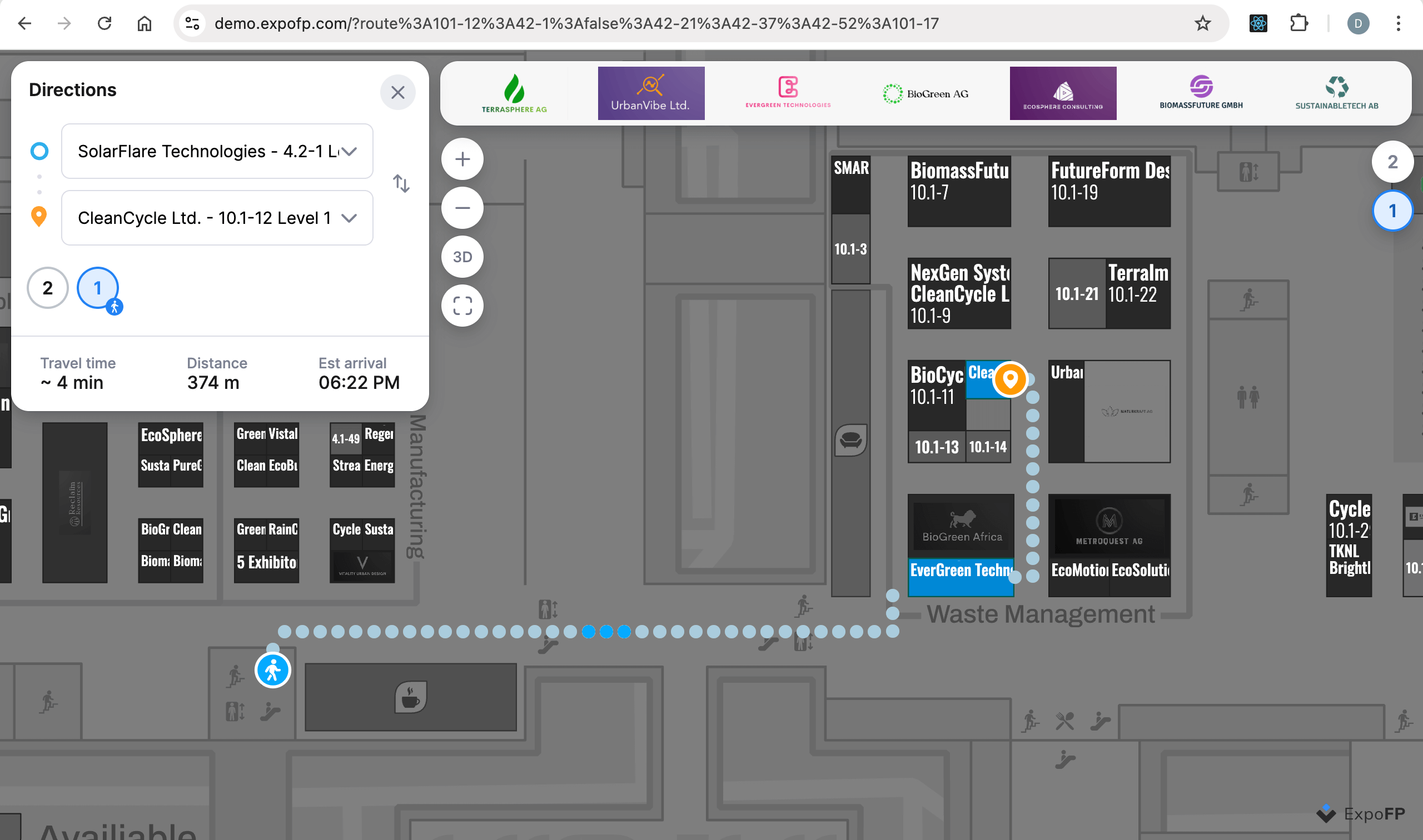

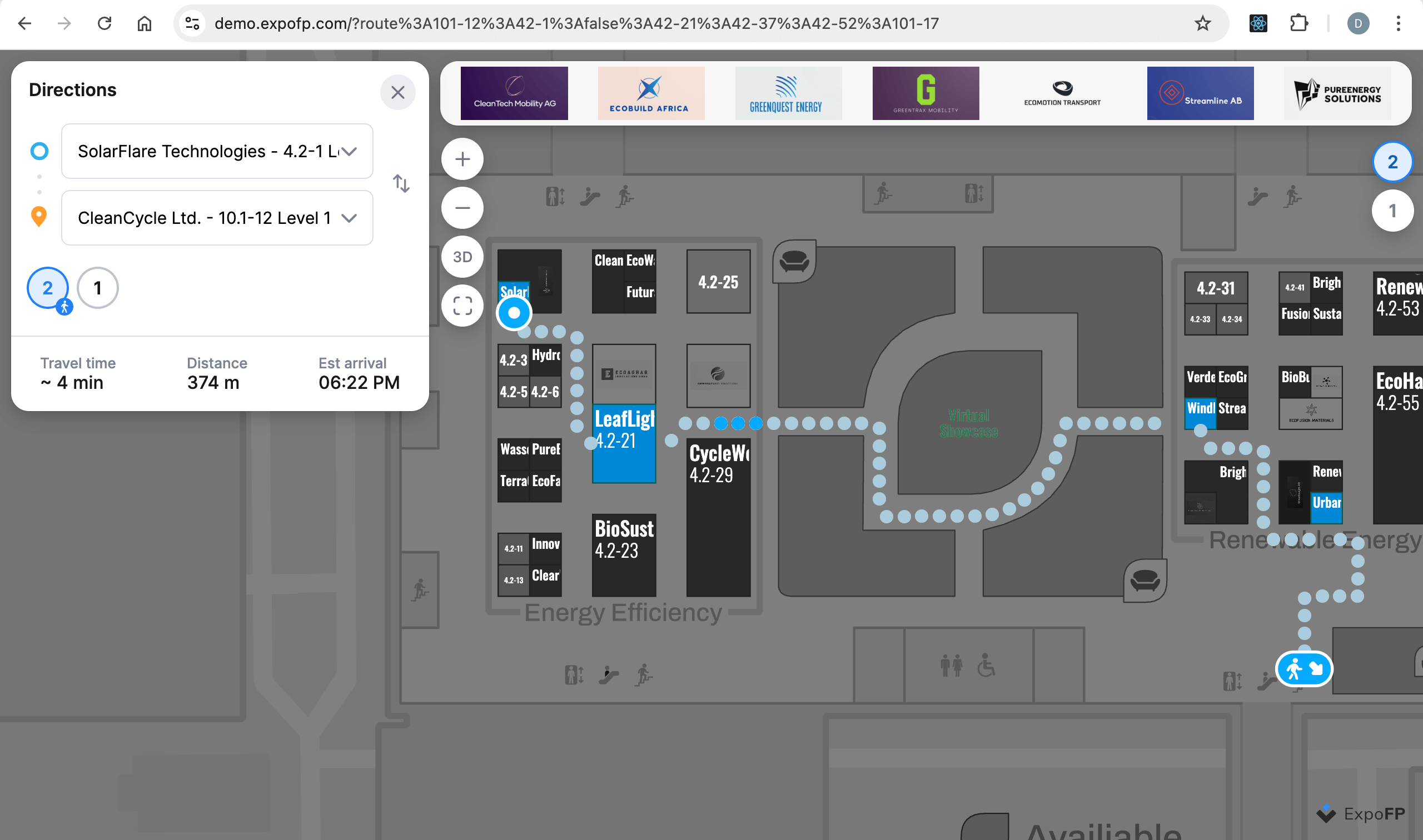

Route Creation

Attendees can view routes that connect multiple points of interest (POIs).

📝 Route limits

A maximum of 8 intermediate waypoints is allowed (total: origin + 8 waypoints + destination = 10)

___fp.selectRoute(['42-1', '42-21', '42-37', '42-52', '101-17', '101-12']);

Open live example

Optimization

An optional optimization mode computes the most efficient order in which to visit the selected POIs.

const selectedRoute = ___fp
  .getOptimizedRoutes(['42-1', '42-21', '42-3', '41-3'])
  .flatMap((route) => route.waypoints);
___fp.selectRoute(selectedRoute);

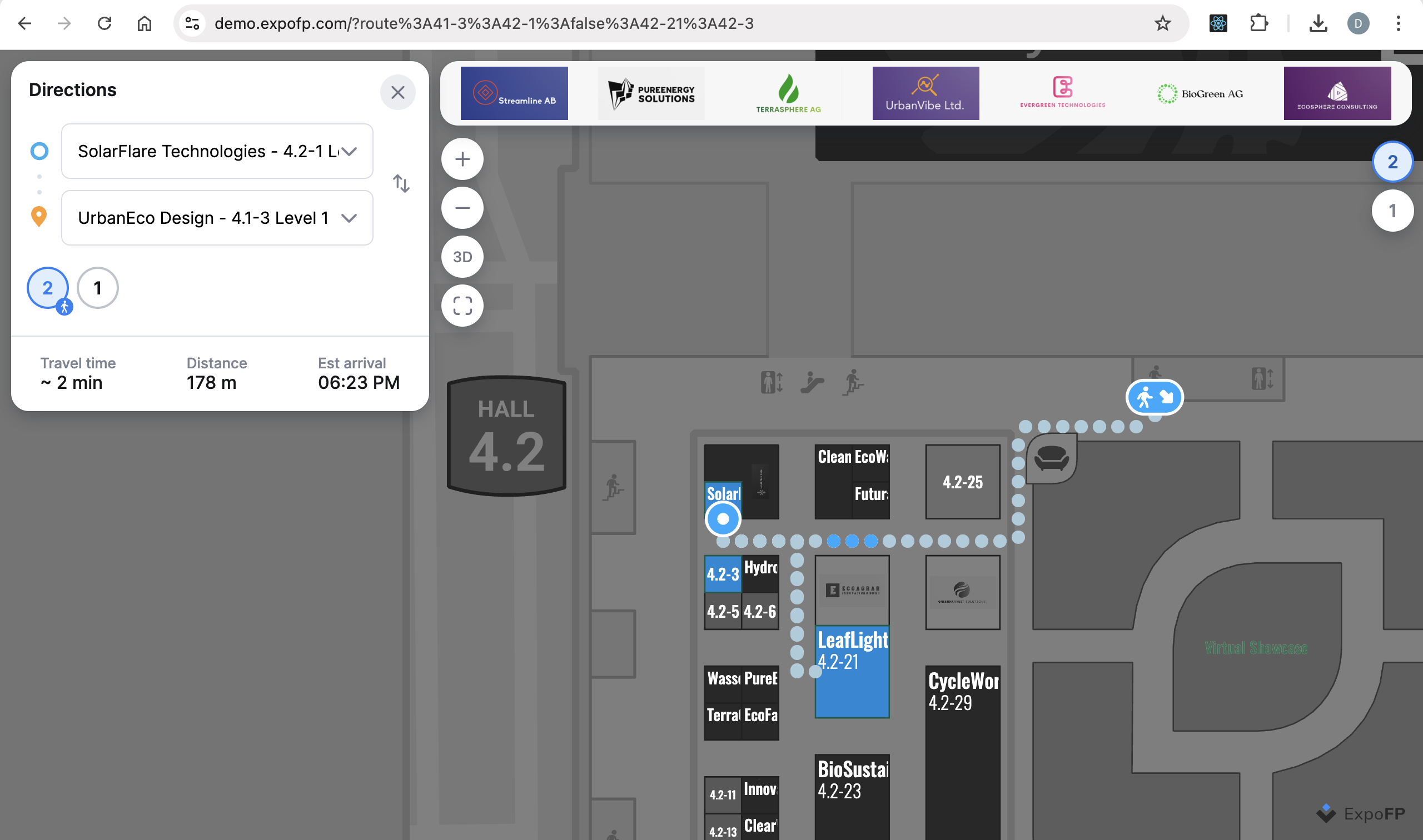

Before optimization

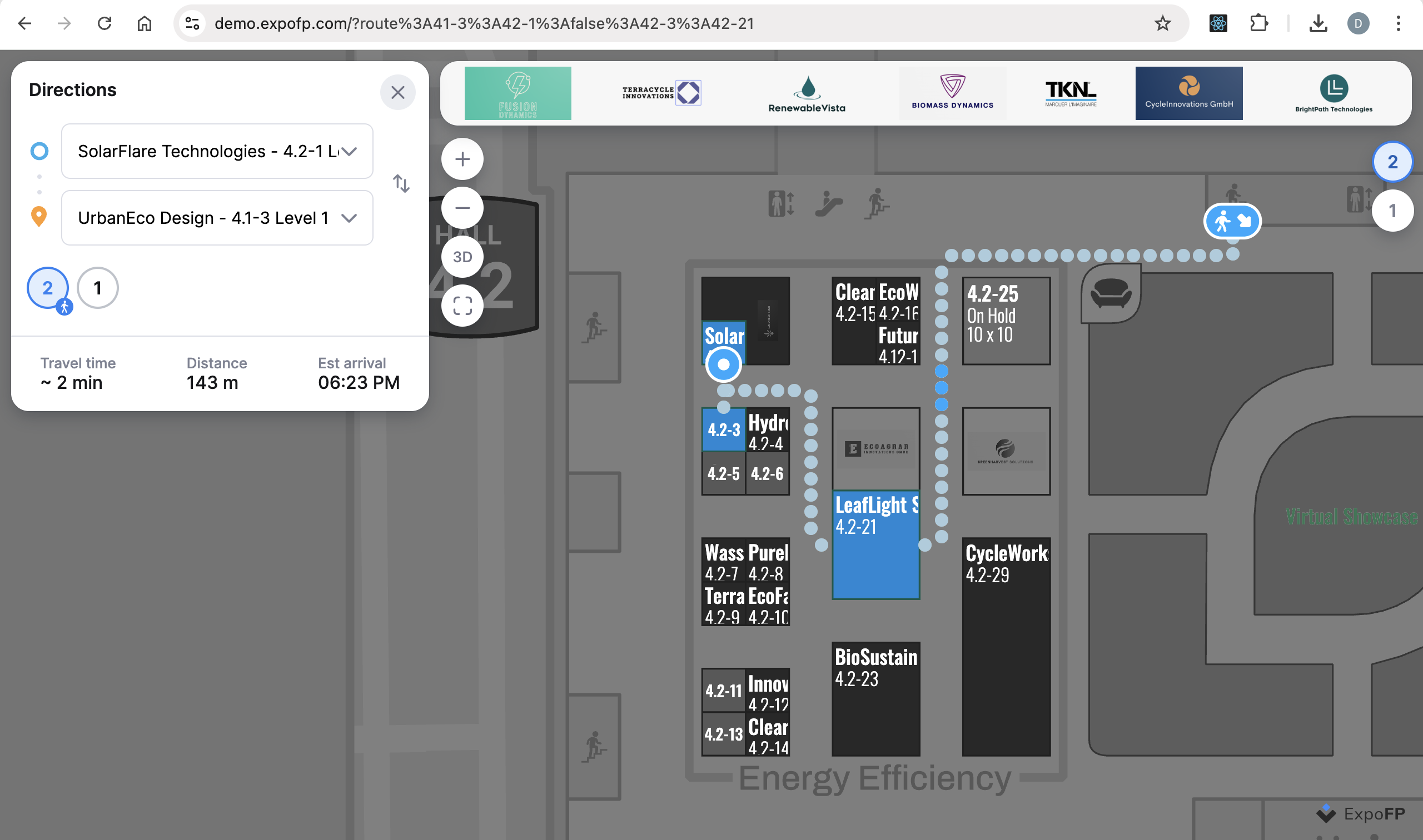

After optimization

Open live example
